Problem statement
Grab bars provide support only in designated areas of the bathroom, leaving other sections without assistance. This lack of continuous support can make it difficult for elderly individuals to navigate safely.
Target audience
Elderly individuals - 60 years and above
Secondary research
Grab Bars Available in the Market
Grab bars are typically available in fixed sizes and, once installed, they cannot be moved. They are usually made of stainless steel, though other materials like plastic and aluminum are also available. There are various types of grab bars, including horizontal, vertical, angled, flip-up/down, and transfer pole grab bars. Among these, suction grab bars are unique — they are portable and mostly made from plastic.
Suction grab bar
Cons
Suction Grab bars can be attached only to smooth, dry and non-porous surface
Cannot bear heavy weight
Cannot be used on grout lines, painted surfaces
Cannot be fitted to small sized tiles. It can be installed on tile sizes 4”x4” inches (10.2 cm) or greater.
Pro
Portable
Gives stability for getting in and out
User persona

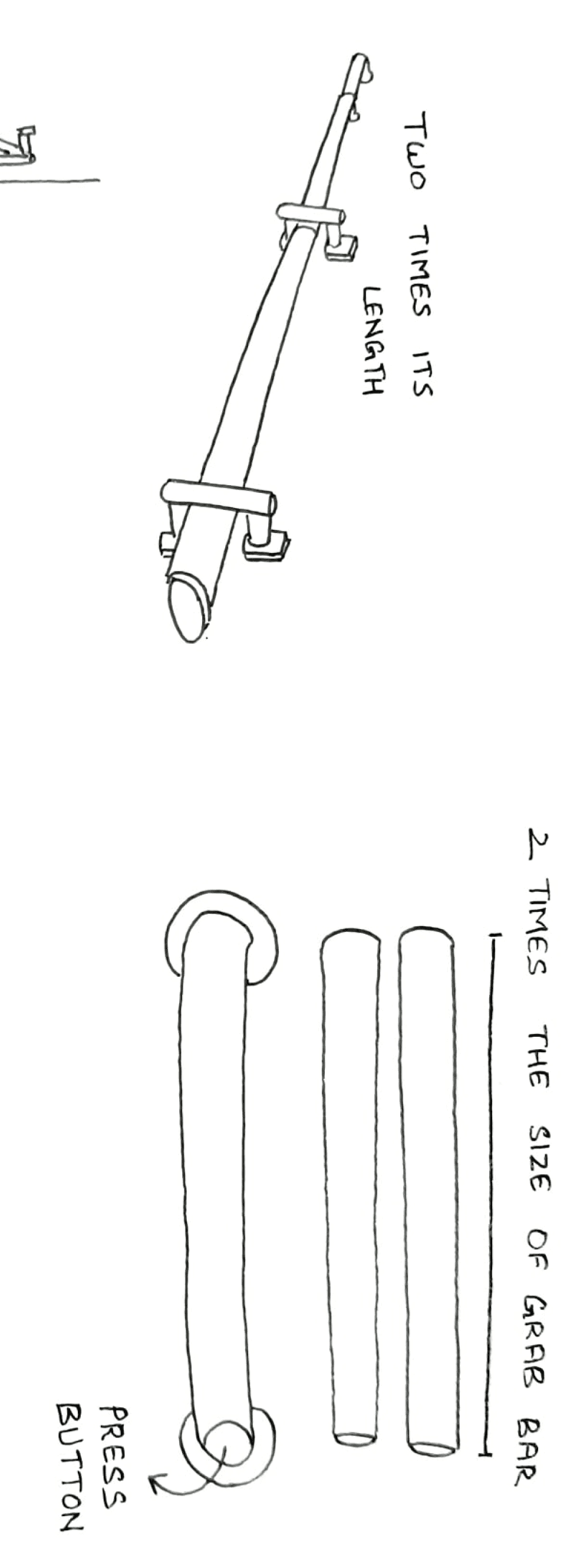

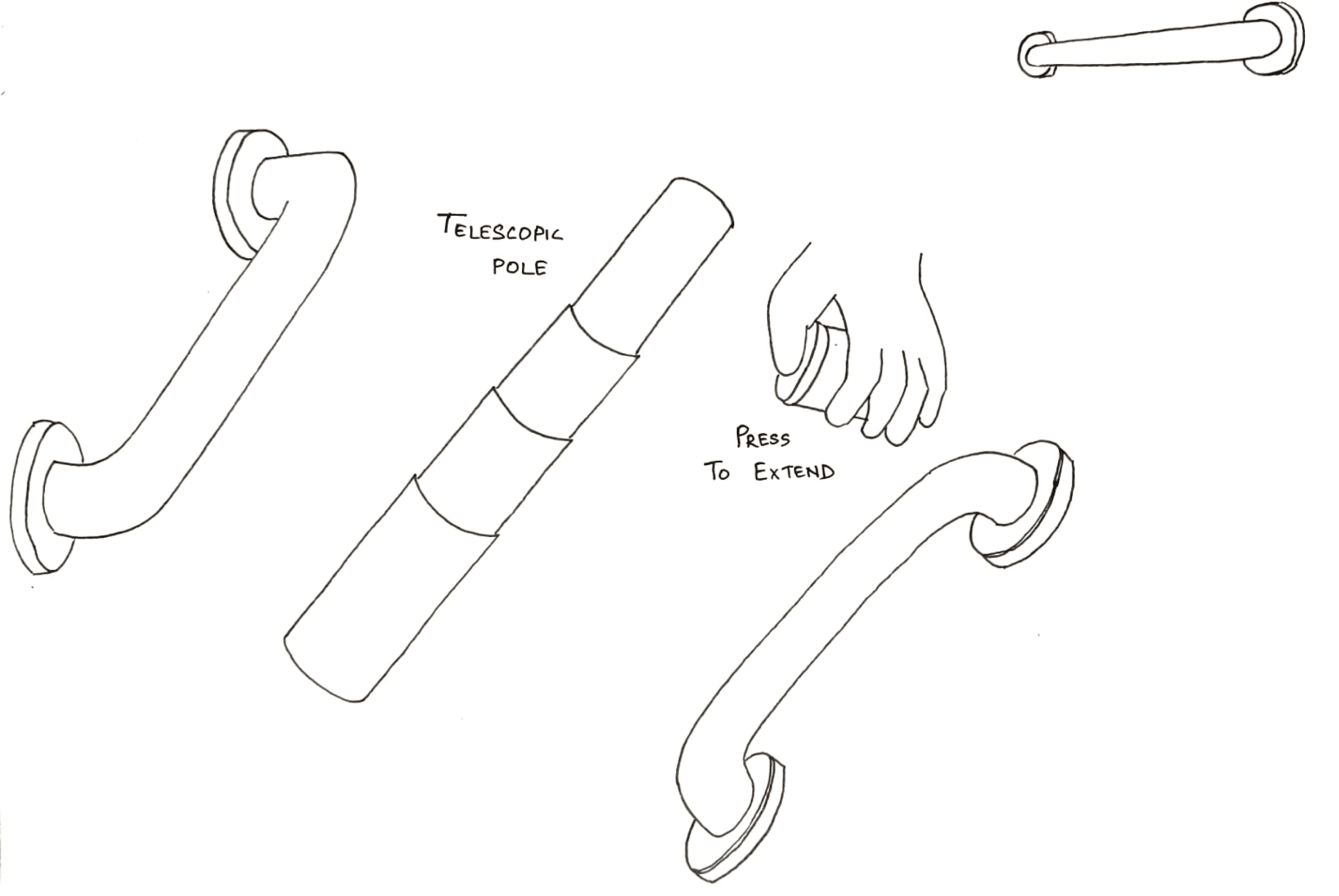

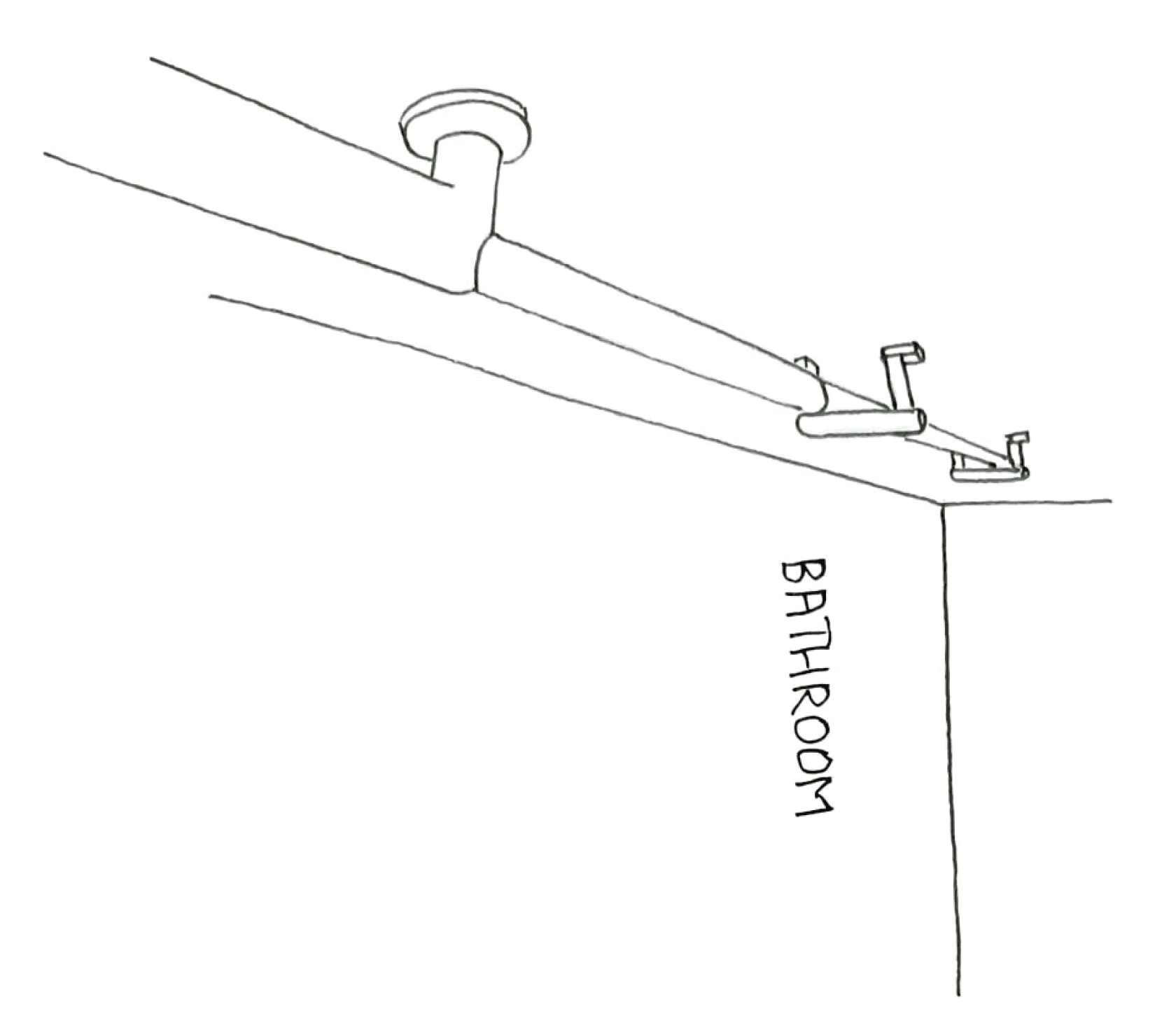

Sketch

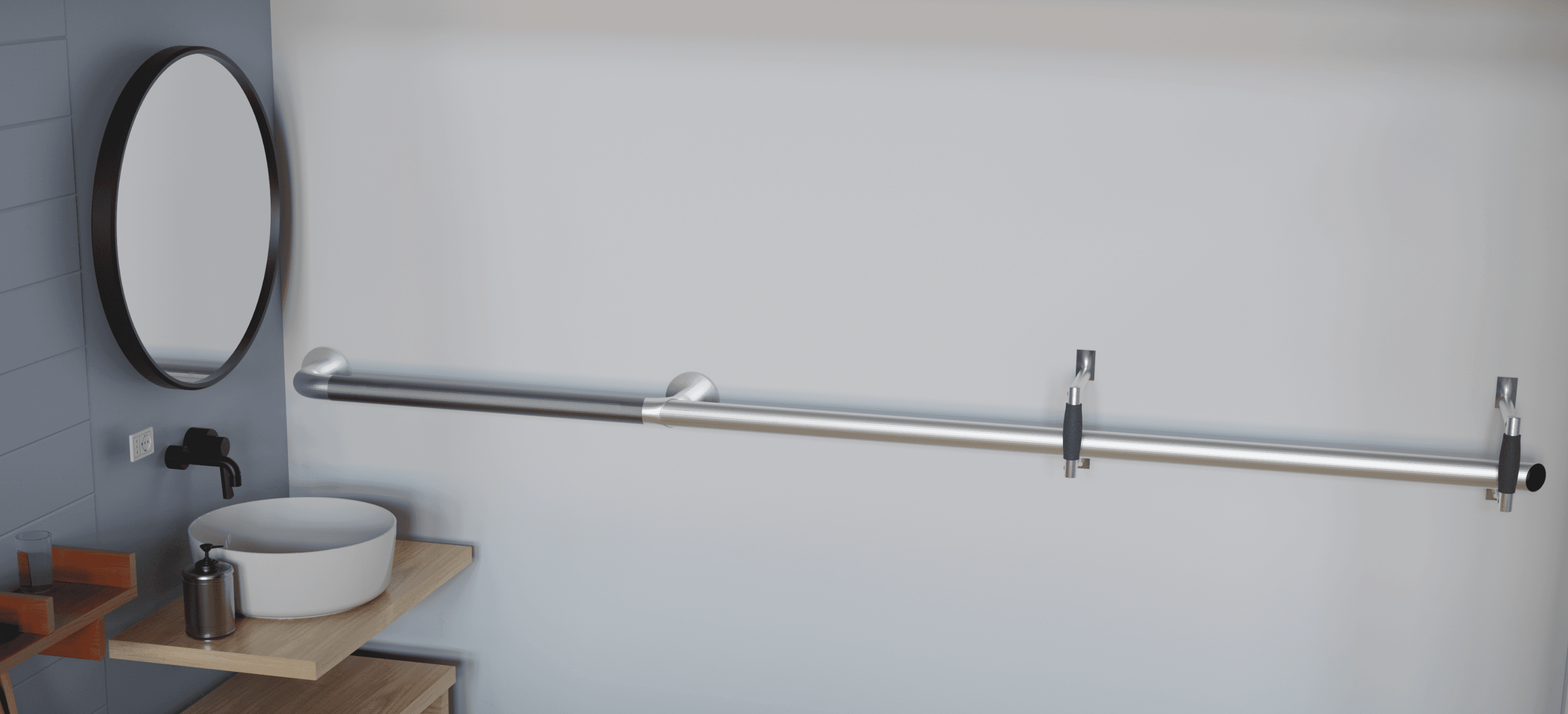

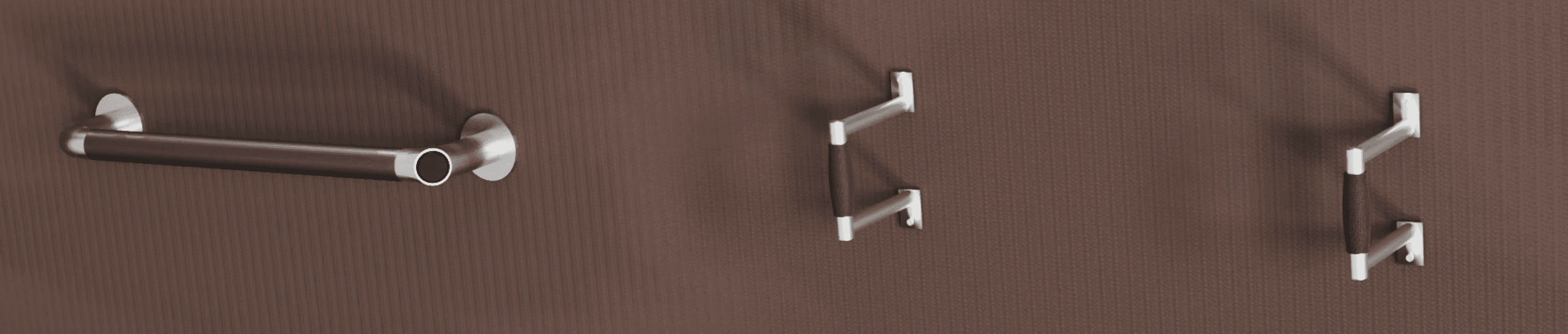

Final rendered 3D model
The innovative aspect of the design lies in integrating an existing product, the telescopic pole, into the grab bar. This enhances safety and provides a secure grip, helping elderly individuals move confidently across the bathroom.
The core idea behind the design is space-saving. Some elderly individuals are strong enough to use the grab bar in its regular form without needing to extend it. However, for those who are weaker or require additional support, the grab bar can be extended to provide a more secure grip.
Grab bar – when used in its standard, non-extended form

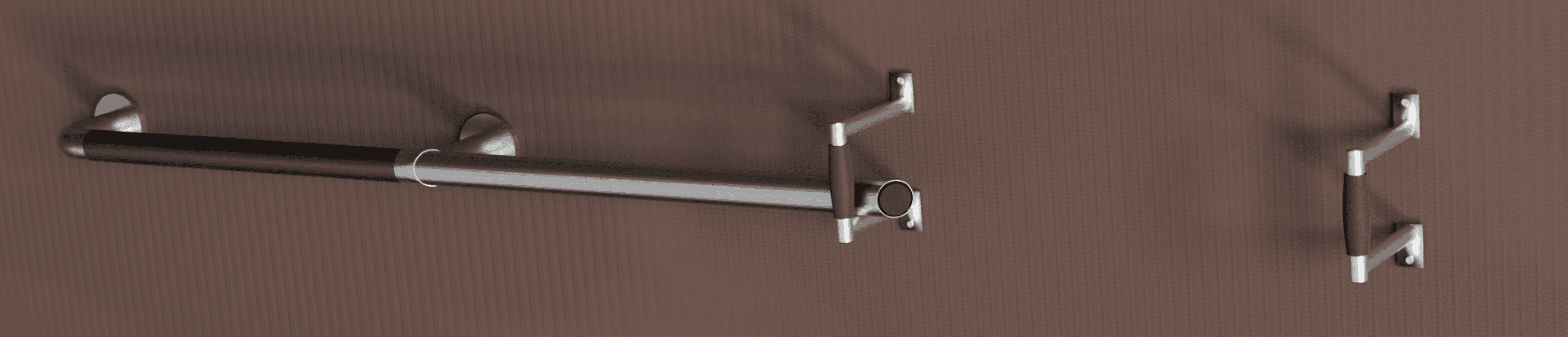

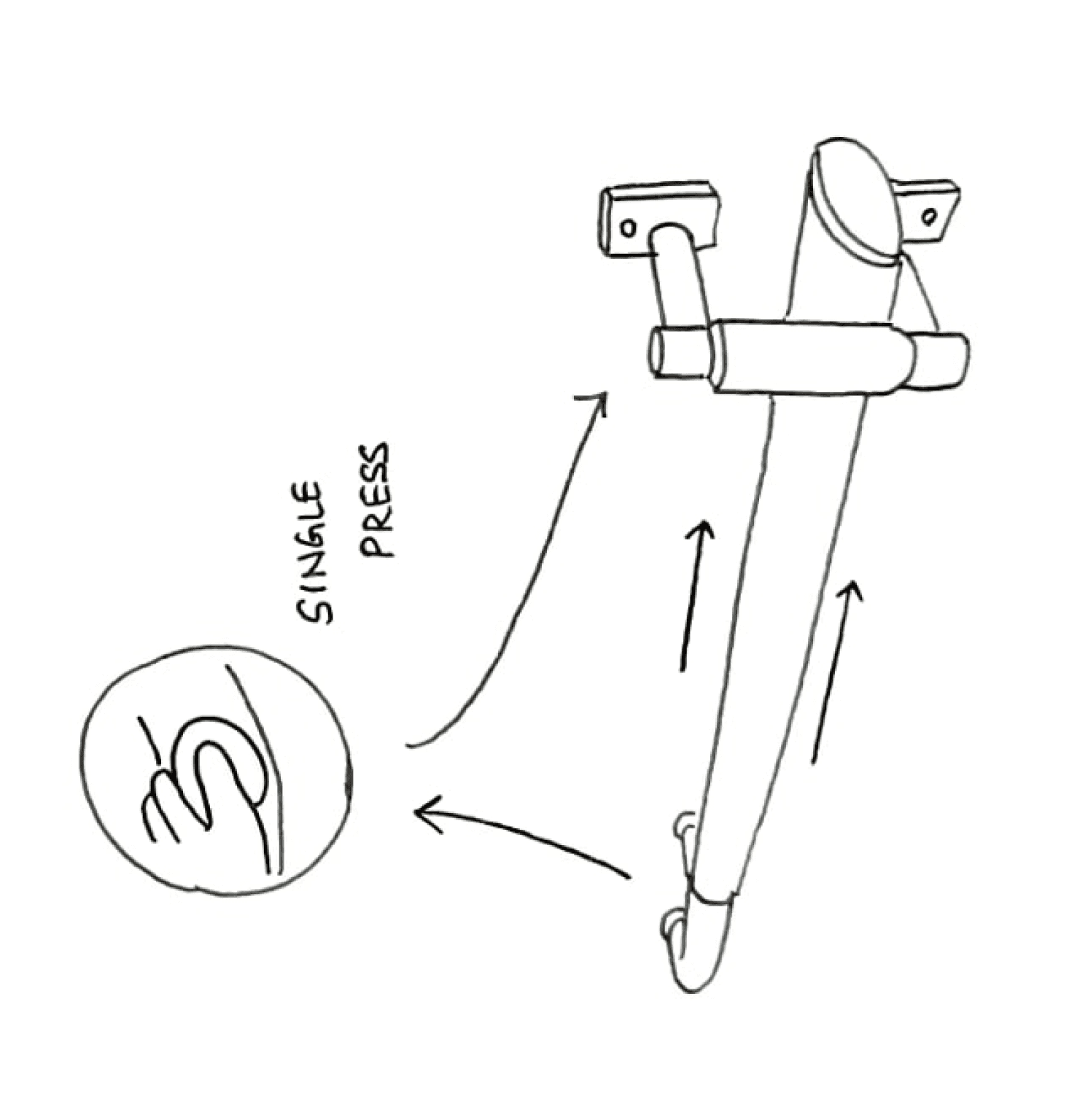

Grab bar – extends in one press

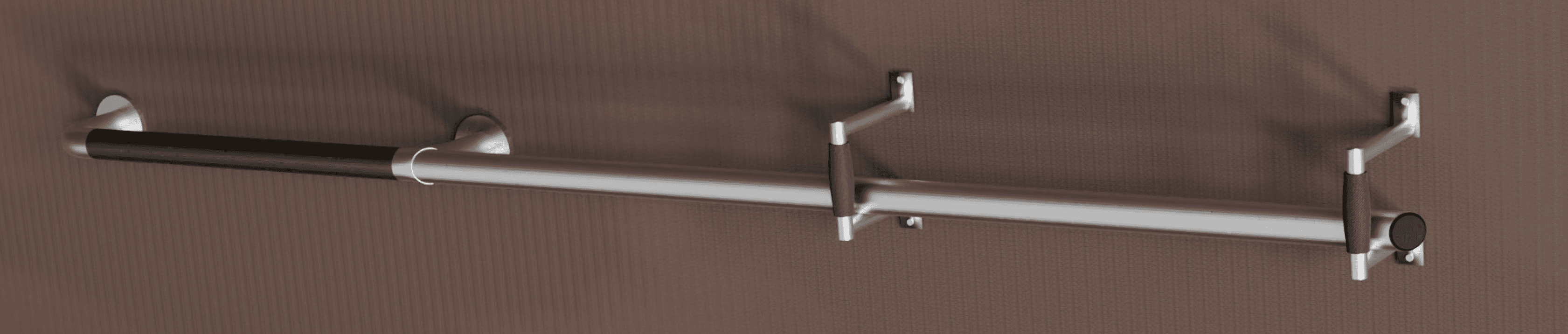

Grab bar – extends further with a second press for added support

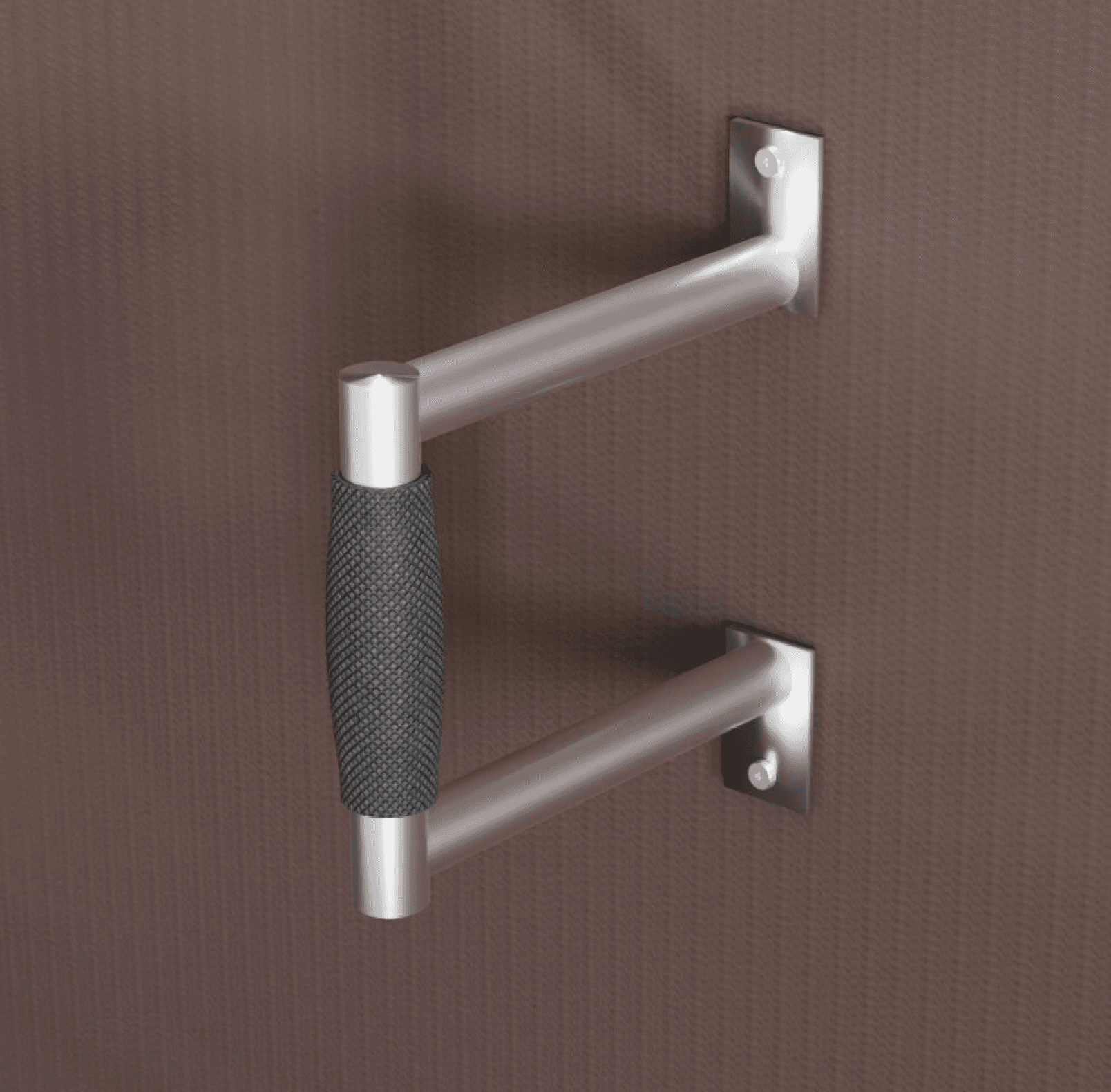

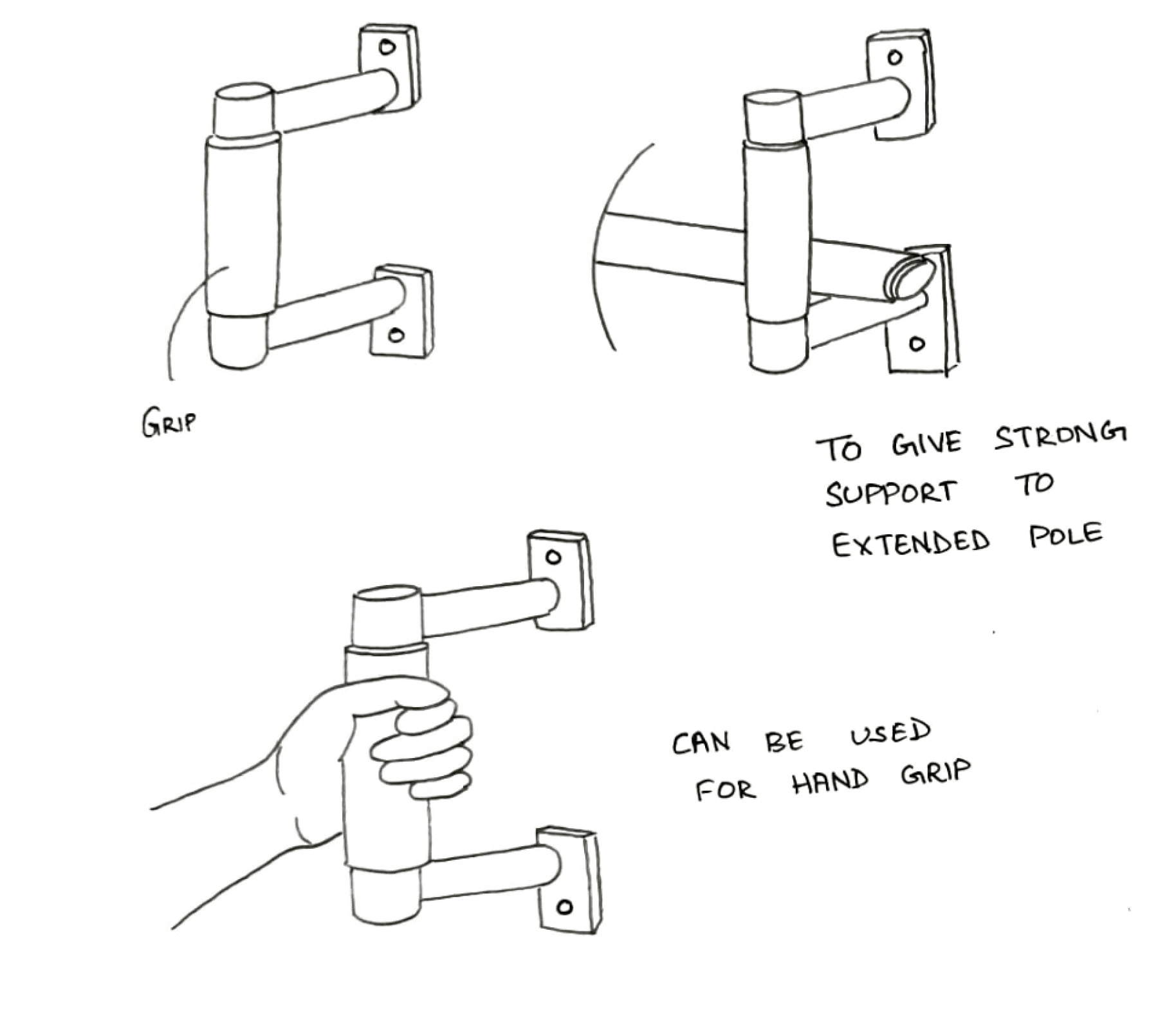

Foldable handle
Exploded view
A foldable handle grip is installed at a specific distance from the grab bar, serving a dual purpose: it provides strong support for the extended pole and also functions as a hand grip.

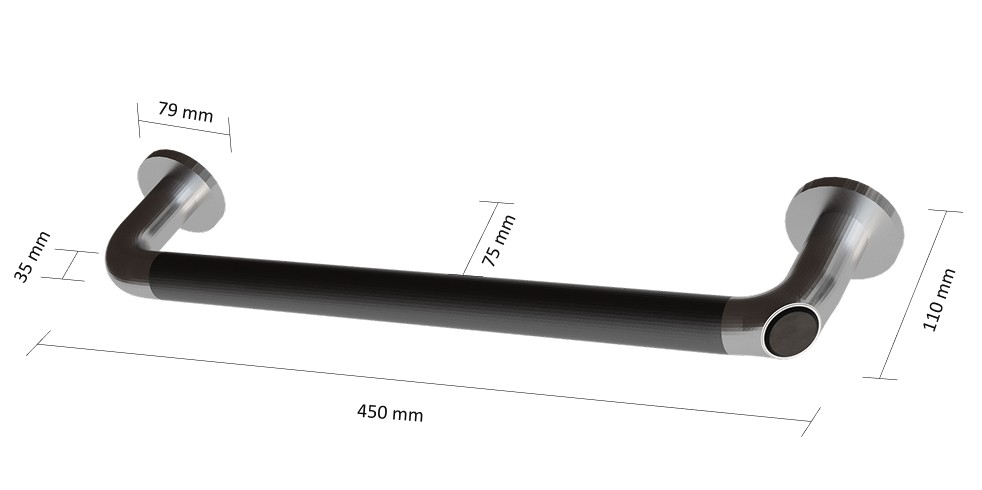

Dimensions
Materials
Grip material on the grab bar to enhance stability.
